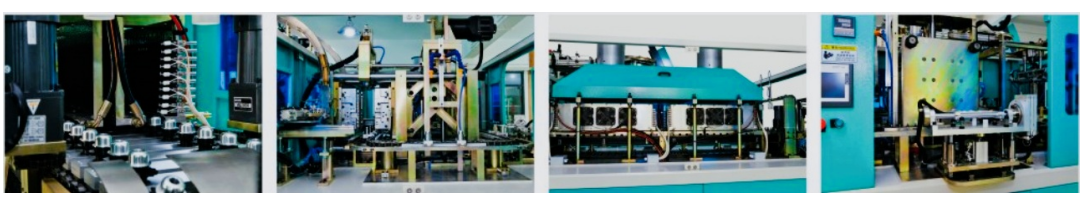

Machine characteristics
Capable of manufacturing a wide range of products. This two-step blow molding machine adopts standardized design. All mechanical components are supplied by well-known brands. With full servo control, the machine delivers significantly improved operational reliability and stability.
Technical Parameters
| Composition | Item | LQ – 190-B2 |
| Blow molding section | Number of mould cavities | 2 |
| Operating pressure | 8–10bar | |
| Low-pressure compressed air consumption | 2.0–2.5m³/min | |
| High-pressure air consumption
Depends on pet bottle volume |
Blowing pressure | 26–35bar |
| High-pressure compressed air consumption | 2–3.0m³/min | |
| Weight | Main uni t\ heating unit \ electrical control cabinet, etc | 6t |
|
Bottle dimension |
Neck diameter |
φ18mm–φ38mm |
|
|
Base diameter |
φ20mm–φ130mm |
|
|
Bottle pitch |
190mm |
|
|
Blow height |
≤307mm |
|
|
Bottle volume |
0.5L–2.5L |
| Output | 1250ml/1900ml | 1100–1300BPH |
