Features and advantages
Introduction
LQ – 24000A linear bottle blowing machine, apply to 0.8L and below volume PET bottle servo motor machine, suitable for food package bottle, edible oil bottle, carbonated drink bottle, mineral water bottle, juice bottle, wine bottle, cosmetic bottle, etc.
Advantages

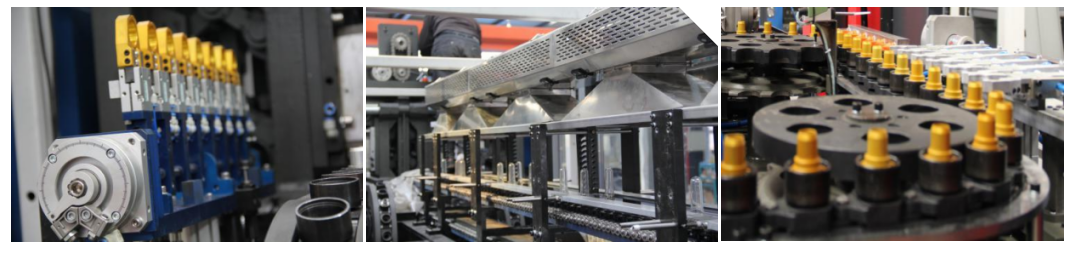

1. Adopt servo motor drive clamping mould,stretching and stepping,fulfill high precise ,high-speed operation,high stability,energy-saving and environmental protection,etc.
2. Equipped with high pressure air recycling system,no need low pressure configuration,save cost and area.
3. Adopt Man-Machine interface to control,easy to operate,high rate of finished products;adopt modular assembly design,easy to repair.
4. Install and locate mould precisely and convenient to exchange.
5. Suitable for (PET): edible oil bottle,mineral water bottle,beverage bottle,pharmaceuticals bottle, dairy bottle and cosmetic bottle,etc.
Technical Parameters
| Parameter Item | Specification Value |
| Model | LQ-24000A |
| No. of Cavity | 12 Cavities |
| Max. Bottle Capacity | 0.8 Ltr |
| Max. Bottle Diameter | 75 mm |
| Max. Bottle Height | 300 mm |
| Preform Neck (Inner Diameter) | 18~30 mm |
| Theory Production | 24,000 pcs/h (Based on 500ml, 16g preform) |
| Heating Ovens | 6 Units (48 pcs Infrared lamps) |
| Max. Heating Power | 72 kw |
| Main Machine Dimensions | 5700 * 2100 * 2300 mm |
| Elevator Dimensions | 3900 * 1300 * 3400 mm |
| Weight | 10 Ton |
| Voltage | 380V (50/60Hz) |
